Understanding the Different Types of Helical Pile Foundation Repair Solutions in Texas

Texas homes and commercial buildings take a beating from the ground up. From expansive clay soils that swell after heavy rain and shrink during droughts, to drainage issues and construction on fill dirt, foundation movement is a common reality across the state. If you've noticed cracks in brick or drywall, doors that stick, sloping floors, or separation around windows, you're probably asking the same question most Texas property owners ask: What's the best foundation repair solution for my situation?

One of the most reliable, minimally invasive, and widely used options is helical pile foundation repair. But "helical piles" is a broad category there are multiple configurations, applications, and installation approaches depending on your structure, soil conditions, access, and repair goals.

Here is a clear, Texas-focused breakdown of the different types of helical pile foundation repair solutions and when each makes sense so you can understand what you're buying, why it works, and what to expect when working with Cantsink.

Why Helical Piles Work So Well in Texas

Texas is known for high-plasticity clay in many regions, especially around major metros like Dallas-Fort Worth, Austin, San Antonio, and Houston. Clay expands as it absorbs moisture and contracts when it dries out. That constant change can cause:

• Differential settlement (one side moves more than the other)


• Heaving (upward movement)


• Voids under slabs due to washout


• Ongoing seasonal movement that worsens existing cracks



Helical piles (also called helical piers or screw piles) are designed to transfer structural loads past weak or shifting soils to more stable bearing layers deeper underground. They're installed by rotating steel shafts with helix plates into the soil—kind of like driving a screw into wood until the pile reaches a target capacity.

Key benefits for Texas foundation repair include:

• Excellent performance in variable soils


• Fast installation (often with less excavation)


• Load can be verified during install (torque-to-capacity correlation)


• Effective for lift and stabilization


• Works for residential and commercial projects



The Main Types of Helical Pile Foundation Repair Solutions

1) Underpinning Helical Piers for Perimeter Foundations (Most Common Residential Repair)

Best for: Homes with settling perimeter footings, pier-and-beam foundations, or slab-on-grade with edge beam issues.

This is what most people picture when they hear "helical foundation repair." In underpinning applications, helical piles are installed adjacent to the foundation footing, then connected with a foundation bracket that transfers load from the structure onto the piles.

How it works:

1. Technicians excavate small access points along the perimeter.


2. Helical piles are advanced to a designed depth/capacity.


3. A bracket is installed under the footing or grade beam.


4. The structure is stabilized, and in some cases, lifted toward level.



Why it's popular in Texas:

• Many Texas homes have perimeter movement from moisture changes.


• It's targeted only installed where needed.


• Minimal disruption to landscaping compared to full foundation replacement.


Common signs it helps:

• Stair-step cracking in brick


• Gaps at garage corners


• Doors/windows that stick


• Cracks radiating from corners


2) Helical Tiebacks for Retaining Walls and Bowing Foundation Walls

Best for: Retaining walls that are leaning, bowing, or sliding; some basement/foundation wall stabilization (where applicable).

In certain parts of Texas especially properties with grade changes, hill country terrain, or erosion issues retaining wall failure is a major concern. Helical systems can be used as tiebacks (anchors) to resist lateral soil pressure.

How it works:

• A helical anchor is installed into stable soil behind the wall.


• A bracket/plate and tension rod connects the anchor to the wall.


• The system is tensioned to counteract lateral forces.


Why it matters:
Retaining wall failures often get worse quickly, especially after heavy rain. Tiebacks can stabilize the wall without rebuilding it from scratch.

Where you'll see this in Texas:

• Hill Country properties near Austin and San Antonio


• Lakeside developments


• Commercial sites with drainage and slope challenges


3) Helical Piles for Slab Support and Interior Underpinning

Best for: Slab-on-grade homes with interior settlement, commercial slabs, and areas where the middle of the structure is dropping.

Not all foundation movement happens at the perimeter. Some homes and buildings experience interior settlement—often due to:

• Poor compaction under the slab


• Plumbing leaks causing washout


• Fill dirt issues


• Long-term consolidation of soils


In these cases, helical piles can sometimes be installed for interior slab support, depending on access and design. This may include specialized brackets, caps, or slab interface details engineered for the structure.

Important note:
Interior helical work is more complex than perimeter underpinning because it can require cutting slab sections for access and then restoring concrete afterward.

When it's worth it:

• Structural movement is clearly interior-based


• There's evidence of voids or washout


• Building use demands higher performance (warehouses, retail, medical)


4) Helical Pile + Beam Support Systems (Grade Beam or Supplemental Beams)

Best for: Homes or buildings that need load redistribution, or where existing framing needs reinforcement.

Sometimes a foundation repair isn't just about adding piles it's about how the load is transferred. In these situations, contractors may install helical piles and then add:

• Supplemental steel beams


• Grade beam reinforcement


• New support points beneath critical spans


This approach is common when:

• A pier-and-beam foundation has deteriorated supports


• A structure has long unsupported spans


• The repair plan requires redistributing loads across multiple piles



In Texas, where a lot of homes have additions, converted garages, or poorly supported remodels, this can be a game-changer.

5) Helical Piles for Porch, Patio, and Addition Settlement

Best for: Sinking porches, front steps pulling away, settling room additions, attached patios, and decks.

A frequent Texas scenario: the main home is stable(ish), but an addition or porch is moving because it was built on:

• shallow footings


• uncompacted fill


• poor drainage areas


• a different soil profile than the main structure


Helical piles are ideal here because they can be installed with minimal excavation and used to:

• stabilize the porch/addition


• lift and re-support settled sections


• prevent the structure from continuing to pull away


This is also a smart option for preventing future problems when building new additions in areas known for movement.

6) Helical Piles for Commercial Foundation Repair and Structural Support

Best for: Retail buildings, industrial facilities, office structures, signage, equipment pads, and multi-family properties.

Commercial foundation repair often comes with stricter requirements: load demands, engineering documentation, limited downtime, and safety considerations. Helical piles are frequently selected because:

• They can be installed quickly with smaller equipment


• Capacity can be verified during installation


• They work well in restricted access areas


• They perform under both compression and tension when designed that way


For Texas commercial sites dealing with slab cracks, differential movement, or failing supports, helical solutions can stabilize the structure without major demolition.

Helical Piles vs. Other Foundation Repair Methods in Texas

You'll often hear other terms during the foundation repair process. Here's how helical piles compare:

Concrete Piers (Pressed Piles)

• Can work well in certain conditions


• Often rely on soil resistance that may be inconsistent


• Installation can be more disruptive


• Lift control can vary


Drilled Piers (Bell-Bottom/Drilled Shafts)

• Strong option, especially for new builds or major repairs


• Typically more excavation and spoil removal


• Longer installation timeline


• May cost more depending on site conditions


Polyurethane Foam / Mudjacking

• Useful for lifting slabs (sidewalks, driveways, some interior slabs)


• Does not replace structural underpinning for heavy loads


• Best for flatwork and void filling, not always for perimeter foundations


Where helical piles shine:

• Predictable capacity during install


• Minimal excavation


• Excellent for underpinning and long-term stabilization in shifting soils


How Contractors Choose the Right Helical Pile System

A reputable contractor doesn't guess. The right solution depends on:

• Foundation type: slab-on-grade vs. pier-and-beam


• Movement pattern: perimeter vs. interior settlement


• Soil conditions: clay content, moisture profile, bearing depth


• Access: tight side yards, fences, landscaping, driveways


• Load requirements: single-story home vs. two-story vs. commercial


• Repair goals: stabilize only vs. stabilize + lift


In many Texas projects, the plan is engineered or at least based on load calculations and field conditions. A quality helical pile solution is a system not just a steel shaft.

What the Installation Process Typically Looks Like

While every job is different, most helical pile foundation repairs follow this sequence:

1. Inspection and diagnosis
   Identify where and why movement is happening.


2. Repair plan and pile layout
   Determine placement locations and target capacities.


3. Excavation and access prep
   Small digs near footings or targeted entry points.

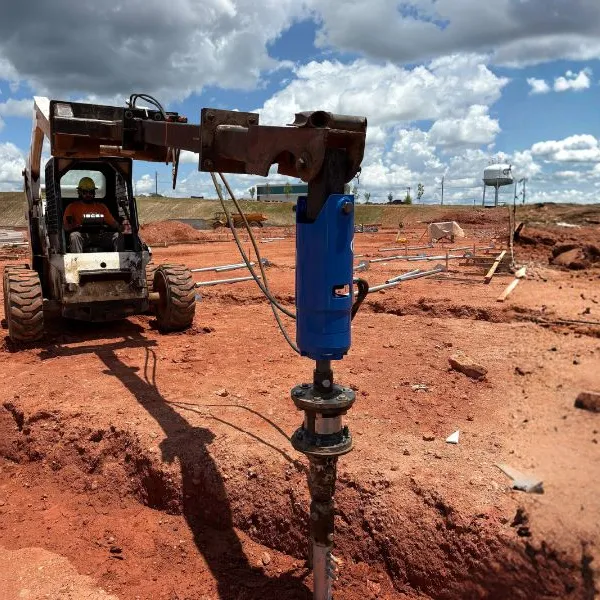

4. Helical pile installation
   Piles are advanced until the required torque/capacity is met.


5. Bracket installation + load transfer
   Brackets connect piles to the foundation.


6. Optional lifting
   If the plan includes lift, the structure is carefully raised.


7. Backfill and cleanup
   Restore soil and leave the site tidy.


Texas Cities and Regions Where Helical Piles Are Common

If you're searching for foundation repair in Texas, you'll see helical piles used frequently in and around:

• Houston (moisture + clay + drainage challenges)


• Dallas / Fort Worth (expansive soils + seasonal movement)


• Austin (variable terrain, fill issues, slope lots)


• San Antonio (clay soils + Hill Country transitions)


• Katy, Cypress, Sugar Land, The Woodlands


• Plano, Frisco, McKinney, Arlington, Irving


• Round Rock, Cedar Park, Georgetown


• New Braunfels, Schertz, Boerne



(Exact suitability depends on site conditions and structural design, but these are common areas where movement is frequently addressed.)

Questions to Ask Before Hiring a Helical Pile Foundation Repair Contractor in Texas

Before you move forward, ask:

• What capacity will each pile be designed to support?


• How is capacity verified during installation (torque readings)?


• What bracket type will be used and why?


• Is the plan engineered or based on structural evaluation?


• Will the repair stabilize only, or attempt lift?


• What warranty is offered and what does it cover?


• How will drainage/moisture issues be addressed (if relevant)?



A solid contractor will explain the "why," not just the "what."

The "Best" Helical Pile Solution Is the One Matched to Your Structure

There's no single helical pile repair that fits every Texas foundation problem. The right solution depends on where the movement is happening, what soil is doing beneath your property, and how your structure distributes load.

Helical piles are versatile used for perimeter underpinning, interior support, tiebacks, additions, and commercial stabilization and that versatility is exactly why they've become a go-to foundation repair option across Texas.

If you're seeing signs of foundation movement, it's worth getting a professional evaluation by Cantsink so you can determine whether helical piles are the right fix and which type of helical system will actually solve the problem long-term.
